項目編號：E787
文件大?。?.8M
源碼說明：帶中文注釋
開發環境：Verilog
簡要概述：
簡要概述：
Altera公司的三速以太網(TSE)是一個可配置的FPGA軟核MAC，主要應用于10/100 Mbps (快速以太網)和1000 Mbps (千兆以太網)線路卡、NIC卡以及交換機等。
官方資源：
http://www.altera.com.cn/support/ip/interface-protocols/ips-inp-tse.html
http://www.altera.com.cn/literature/ug/ug_ethernet.pdf
http://www.altera.com.cn/support/refdesigns/ip/interface/ref-triple-speed-ethernet-data-path.html
http://www.altera.com.cn/literature/an/an647.pdf
http://www.altera.com.cn/literature/an/an440.pdf
http://www.altera.com.cn/literature/an/an483.pdf
http://www.altera.com/support/ip/interface-protocols/ips-inp-tse.html

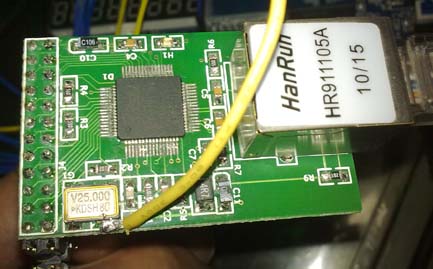

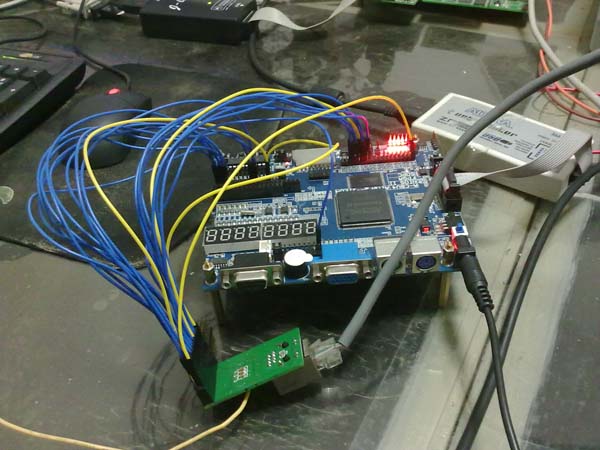

官方的FPGA開發套件提供了與Marvell 88E1111 PHY工作的實例，但俺沒有銀子，最便宜的DE2開發板也得3000塊吧。我用手頭的EP2C8Q208C8搭建了一個測試平臺：

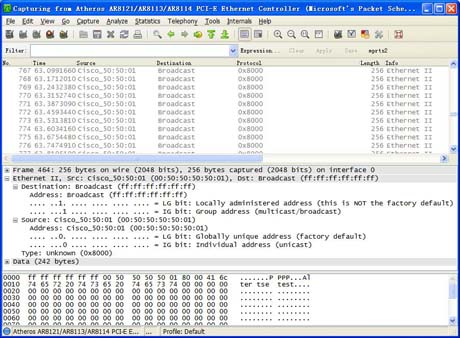

(1)發送測試：
(2)接收測試：
Id1 = 0x13, Id2 = 0x78e2.
Wait reset.
Reset ok.
config = 0x3100.
MII status = 0x7809.
Reg 4 = 0x1e1.
Wait Auto-nego...OK.
config = 0x3100.
MII status = 0x782d.
MII status2 = 0x4780.
Link OK.
-----------------------------
RX 0x3c bytes:
0000: FF FF FF FF FF FF 00 25 11 06 07 39 08 06 00 01
0010: 08 00 06 04 00 01 00 25 11 06 07 39 C0 A8 01 A0
0020: 00 00 00 00 00 00 C0 A8 01 79 00 00 00 00 00 00
0030: 00 00 00 00 00 00 00 00 00 00 00 00
-----------------------------
RX 0x3c bytes:
0000: FF FF FF FF FF FF 00 25 11 06 07 39 08 06 00 01
0010: 08 00 06 04 00 01 00 25 11 06 07 39 C0 A8 01 A0
0020: 00 00 00 00 00 00 C0 A8 01 79 00 00 00 00 00 00
0030: 00 00 00 00 00 00 00 00 00 00 00 00
-----------------------------
RX 0x3c bytes:
0000: FF FF FF FF FF FF 00 25 11 06 07 39 08 06 00 01
0010: 08 00 06 04 00 01 00 25 11 06 07 39 C0 A8 01 A0
0020: 00 00 00 00 00 00 C0 A8 01 79 00 00 00 00 00 00
0030: 00 00 00 00 00 00 00 00 00 00 00 00
-----------------------------
RX 0x3c bytes:
0000: FF FF FF FF FF FF 00 25 11 06 07 39 08 06 00 01
0010: 08 00 06 04 00 01 00 25 11 06 07 39 C0 A8 01 A0
0020: 00 00 00 00 00 00 C0 A8 01 79 00 00 00 00 00 00
0030: 00 00 00 00 00 00 00 00 00 00 00 00
-----------------------------
RX 0x5c bytes:
0000: FF FF FF FF FF FF 00 25 11 06 07 39 08 00 45 00
0010: 00 4E 10 76 00 00 40 11 E5 39 C0 A8 01 A0 C0 A8
0020: 01 FF 00 89 00 89 00 3A AA 2E 80 D7 01 10 00 01
0030: 00 00 00 00 00 00 20 45 44 45 42 45 4A 46 48 46
0040: 46 43 41 43 41 43 41 43 41 43 41 43 41 43 41 43
0050: 41 43 41 43 41 43 41 00 00 20 00 01
-----------------------------
RX 0x5c bytes:
0000: FF FF FF FF FF FF 00 25 11 06 07 39 08 00 45 00
0010: 00 4E 10 86 00 00 40 11 E5 29 C0 A8 01 A0 C0 A8
0020: 01 FF 00 89 00 89 00 3A AA 2E 80 D7 01 10 00 01
0030: 00 00 00 00 00 00 20 45 44 45 42 45 4A 46 48 46
0040: 46 43 41 43 41 43 41 43 41 43 41 43 41 43 41 43
0050: 41 43 41 43 41 43 41 00 00 20 00 01
-----------------------------
RX 0x5c bytes:
0000: FF FF FF FF FF FF 00 25 11 06 07 39 08 00 45 00
0010: 00 4E 10 95 00 00 40 11 E5 1A C0 A8 01 A0 C0 A8
0020: 01 FF 00 89 00 89 00 3A AA 2E 80 D7 01 10 00 01
0030: 00 00 00 00 00 00 20 45 44 45 42 45 4A 46 48 46
0040: 46 43 41 43 41 43 41 43 41 43 41 43 41 43 41 43
0050: 41 43 41 43 41 43 41 00 00 20 00 01
-----------------------------
RX 0x5c bytes:
0000: FF FF FF FF FF FF 00 25 11 06 07 39 08 00 45 00
0010: 00 4E 10 A6 00 00 40 11 E5 09 C0 A8 01 A0 C0 A8
0020: 01 FF 00 89 00 89 00 3A AA 2F 80 D8 01 10 00 01
0030: 00 00 00 00 00 00 20 45 44 45 42 45 4A 46 48 46
0040: 46 43 41 43 41 43 41 43 41 43 41 43 41 43 41 43
0050: 41 43 41 43 41 41 41 00 00 20 00 01
-----------------------------
(3) tse 12.1版本已經可以支持IEEE 1588V2精密時間協議(PTP)協議。
IEEE1588的全稱是“網絡測量和控制系統的精密時鐘同步協議標準”，是通用的提升網絡系統定時同步能力的規范，在起草過程中主要參考以太網來編制，使分布式通信網絡能夠具有嚴格的定時同步，并且應用于工業自動化系統?；緲?gòu)思是通過硬件和軟件將網絡設備（客戶機）的內時鐘與主控機的主時鐘實現同步，提供同步建立時間小于10μs的運用，與未執行IEEE1588協議的以太網延遲時間1，000μs相比，整個網絡的定時同步指標有顯著的改善。
