PID Gains for Common Plants.

The file "UNACpidCalcVx.x.xls" is a Microsoft Excel
spreadsheet compatible with both Excel for Microsoft Office 95
(Excel 7.0) and Excel for Microsoft Office 97 (Excel 97).

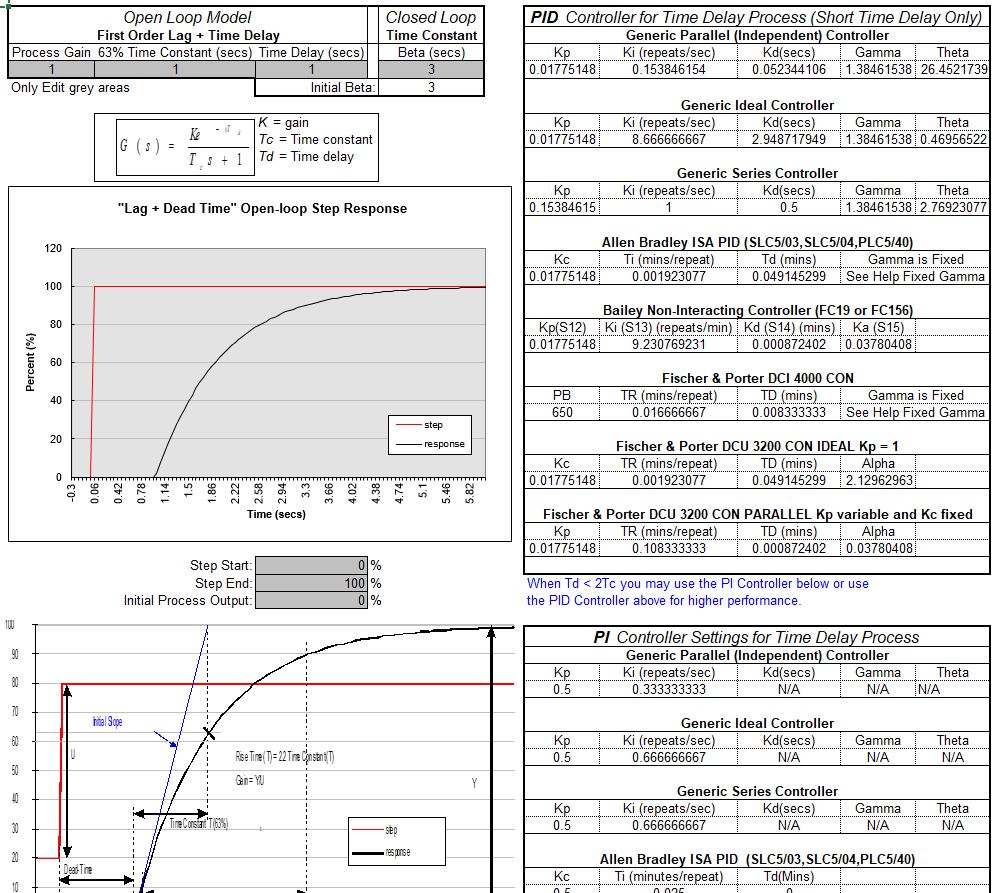

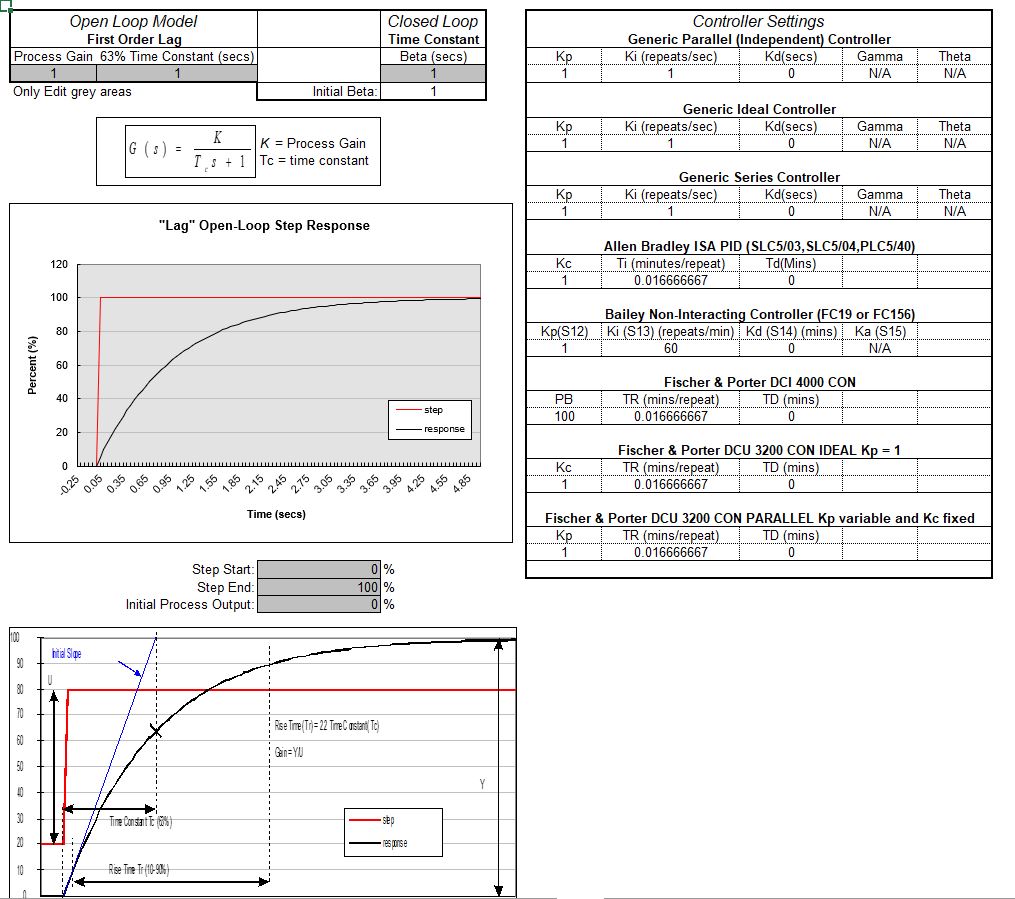

The spreadsheet will calculate PID gains for common low-order
process models.

1. Select the worksheet (the tab at the bottom of the Excel screen) corresponding to your process.

2. Enter the measured process parameters in the greyed areas and press enter.

3. Read off the gains corresponding to your type of controller.For more help, contact CICS Automation. The contact details are contained on the first worksheet.
