項目編號：P239

文件大小：1.49M

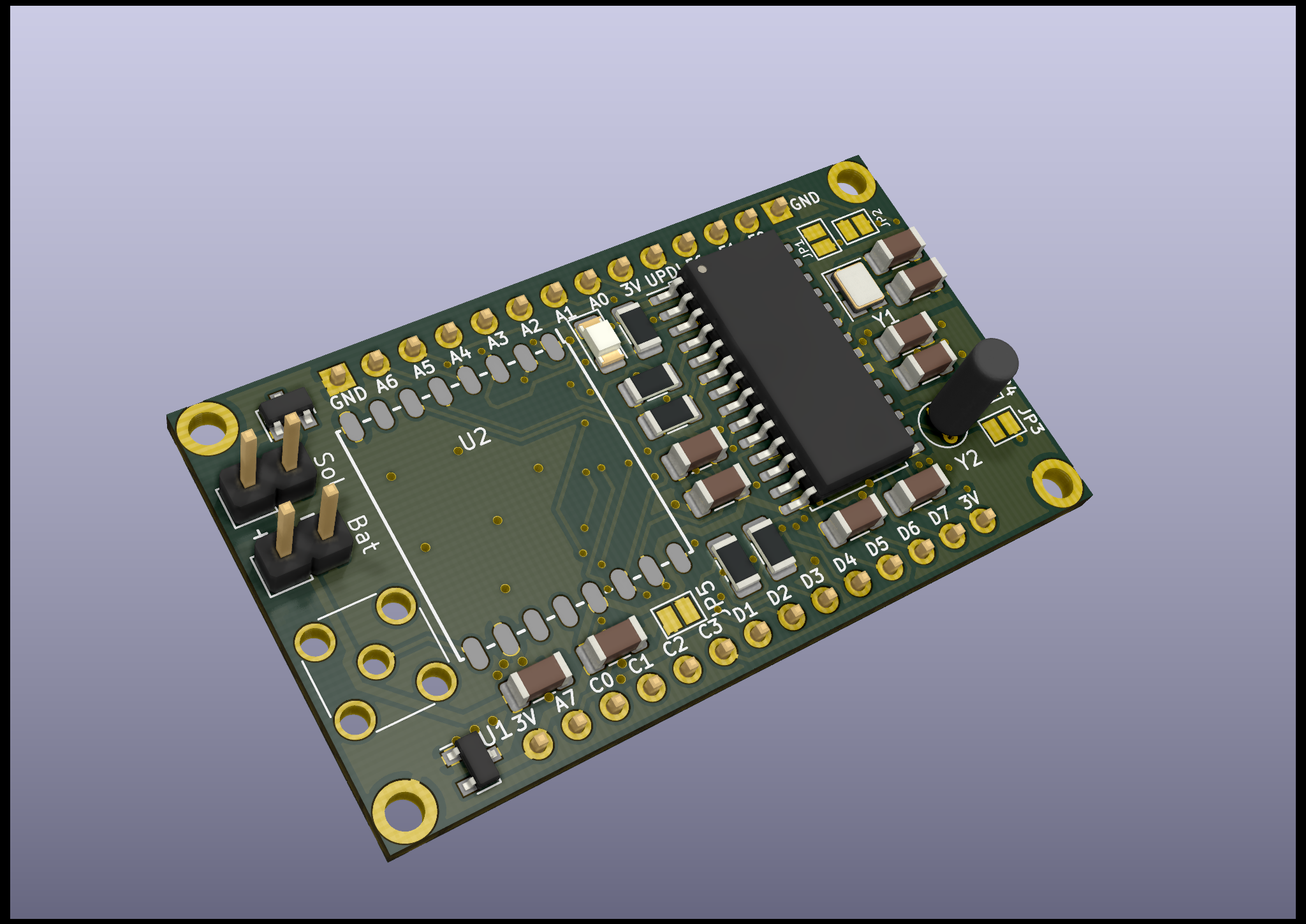

圖紙說明：PCB圖

開發環境：KiCAD

簡要概述：

請注意，大多數組件都是可選的：

• A LED to flash

• I2C 4K7 pull up resistors

• A lot of capacitors (mounting a single 1uF will do in most situations)

• 32.768kHz crystal

• 24MHz crystal

• MCP1700 regulator with 1uA idle current

• Schottky diode for charging NiMH batteries from a solar panel

• Voltage divider for measuring battery voltage

目錄│文件列表:

 └ STM32-RFM95-PCB

    │ AVR-LORA-805.kicad_pcb

    │ AVR-LORA.kicad_pcb

    │ AVR-LORA.pdf

    │ AVR-LORA.png

    │ AVR-LORA.pro

    │ AVR-LORA.sch

    │ AVR.dcm

    │ AVR.lib

    │ fp-lib-table

    │ STM-LORA-rescue.lib

    │ STM-LORA.kicad_pcb

    │ STM-LORA.pro

    │ STM-LORA.sch

    │ sym-lib-table

    ├ RFM

    │  │ RFM95.dcm

    │  │ RFM95.kicad_mod

    │  └ RFM95.lib

    └ STM32China

       │ stm32f103c8t6-module-china.bak

       │ stm32f103c8t6-module-china.bck

       │ stm32f103c8t6-module-china.dcm

       │ stm32f103c8t6-module-china.kicad_mod

       └ stm32f103c8t6-module-china.lib
