項目編號：P482

文件大小：9.4M

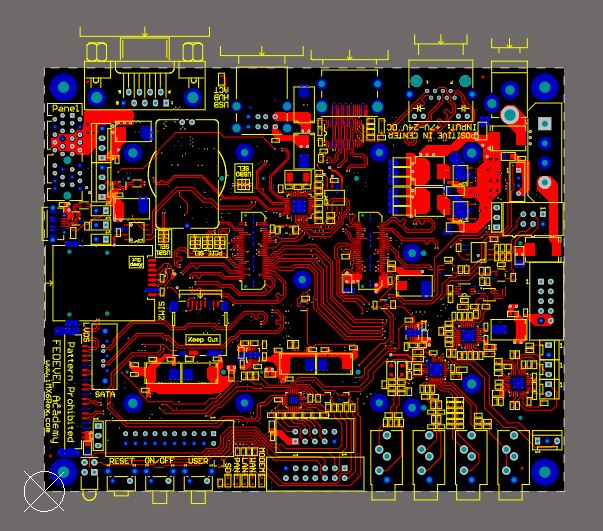

圖紙說明：PCB圖

開發環境：AD2020

簡要概述：

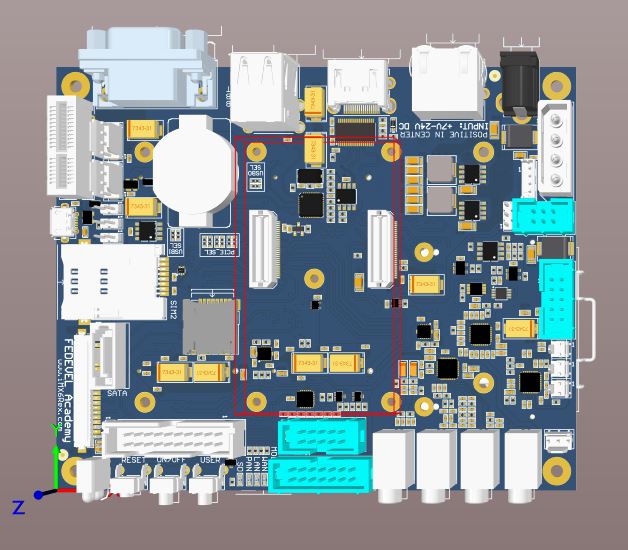

iMX6開發板 原理圖 PCB圖

目錄│文件列表:

    └ iMX6 Rex Development Baseboard V1I1 Altium Project Files

       │ iMX6 Rex Development Baseboard V1I1 Project.SchDoc

       │ iMX6 Rex Development Baseboard V1I1.PrjPcb

       │ iMX6 Rex Development Baseboard V1I1.PrjPcbStructure

       │ iMX6 Rex Development Baseboard V1I1_PCB.PcbDoc

       │ iMX6 Rex Development Baseboard V1I1_PCB.PcbDoc.htm

       │ [01] - COVER PAGE.SchDoc

       │ [02] - BLOCK DIAGRAM.SchDoc

       │ [03] - CONNECTORS.SchDoc

       │ [04] - PCIE MINI 1, PCIE.SchDoc

       │ [05] - PCIE MINI 2, AUDIO2.SchDoc

       │ [06] - SATA, CFAST.SchDoc

       │ [07] - HDMI.SchDoc

       │ [08] - LVDS.SchDoc

       │ [09] - USB.SchDoc

       │ [10] - ETHERNET.SchDoc

       │ [11] - AUDIO1.SchDoc

       │ [12] - SD.SchDoc

       │ [13] - UARTS.SchDoc

       │ [14] - RTC, EEPROM, GPIO, TOUCH SCREEN.SchDoc

       │ [15] - MISC, JTAG, HEADERS.SchDoc

       │ [16] - POWERS 5V, 3V3.SchDoc

       │ [17] - PWR IN, LEDS, BUTTONS, MECH.SchDoc

       │ [18] - DOC, POWER SEQUENCING.SchDoc

       │ [19] - REVISION HISTORY.SchDoc

       ├ BOM

       │  │ BOM Purchasing - iMX6 Rex Development Baseboard V1I1 - Prototype.xlsx

       │  └ BOM Reference-iMX6 Rex Development Baseboard V1I1(Prototype).xlsx

       └ TODO

          └ Read me ToDo.txt
