Update

Since STMicroelectronics bought TouchGFX and integrate the graphical stack into the toolchain STM32CubeIDE, this application must be updated to the new toolchain.

Motivation

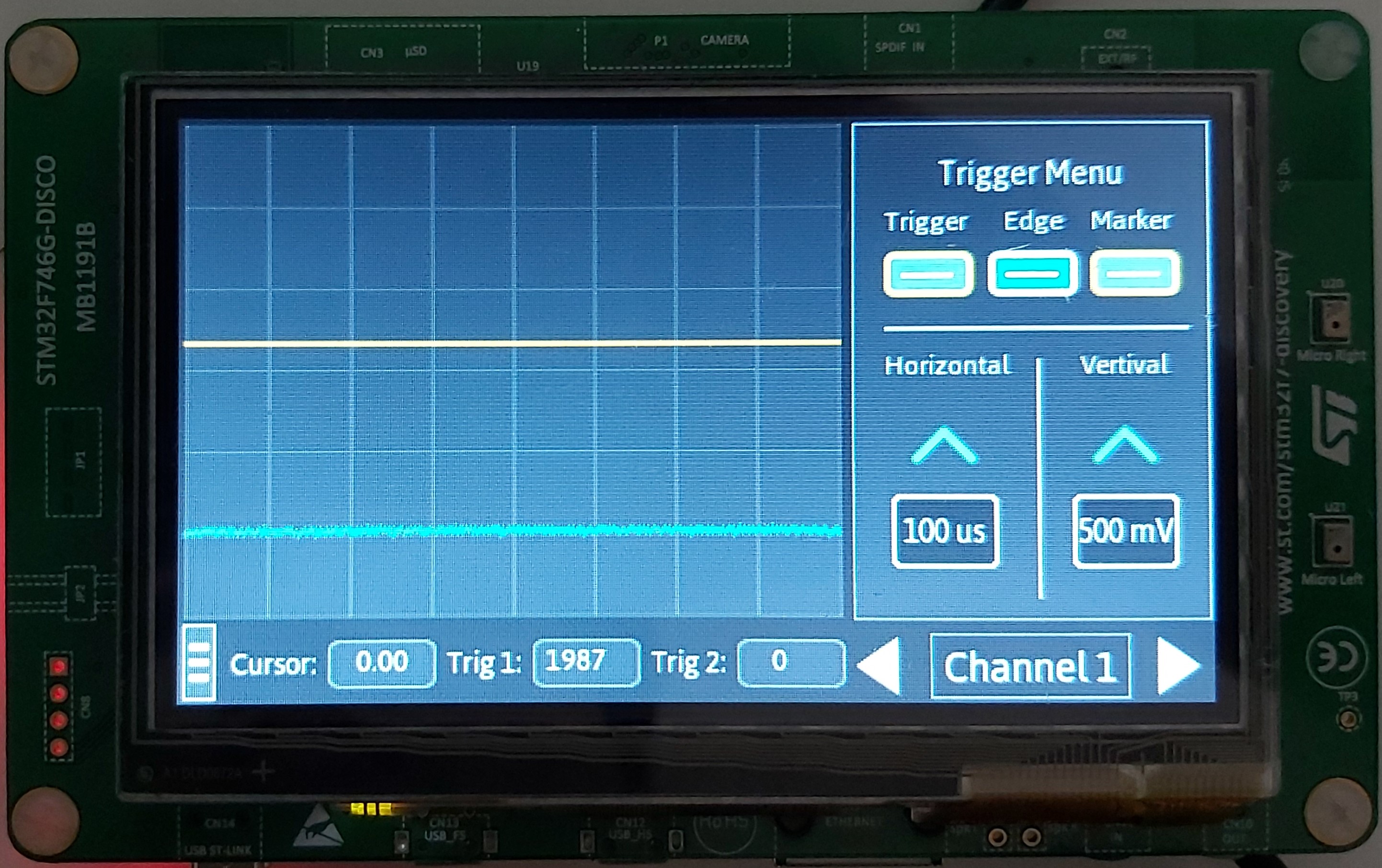

This oscilloscope is built based on the STM32F746-DISCO kit from STMicroelectronics to demonstrate the processing capability of a Cortex-M7 Microcontroller.

The two main blocks of the application are ADC peripheral, which sampling data from the input and graphcal interface, which displays the data and provides a HMI. The graphical interface is built based on TouchGFX grpahical stack, which provide a mordern look and smartphone feel interface.

Features

• 2 input channel

• Sampling rate 1 mega-sample/s per channel

• Maximum input voltage 3.3V

• Rising/Falling edge trigger

• Adjust voltage level, time scale

• Marker for signal mesurement

Requirements

Hardware

• STM32F746-DISCO Kit link

Software

These tools are used for developing the application

• Microsoft Visual Studio (Graphical interface development)

• Keil (Embedded firmware development)

• STM32 ST-Link Utility (This tool is used for flasing the application)

Flashing the application

• Start STM32 ST-Link utility, connect the board to PC, press Connect to the target button

• Drag and drop the binary file into ST-Link. Binary file is located in folder Project/Oscilloscope/Binary

• On the top menu bar, choose External Loader -> Add External Loader -> Choose N25Q128A_STM32F746G-DISCO -> Click Validate

• Click Program verify, click Start

Project struture

• Project: source code of the project

• Binary: binary file of the application

• Firmware: source code of the firmware

• Graphic: source code of the graphical interface

• Oscilloscope

• touchgfx: TouchGFX stack

Contact
